BigTable Connector | OpenMetadata Database Integration

In this section, we provide guides and references to use the BigTable connector. Configure and schedule BigTable metadata and profiler workflows from the OpenMetadata UI:

• Requirements
• Metadata Ingestion
• Troubleshooting

​

Requirements

Before configuring the BigTable connector, make sure the following requirements are in place.

​

BigTable Admin API Permissions

• Enable the bigtableadmin.googleapis.com service in your GCP project. See the Cloud Bigtable Admin API reference.
• Select the GCP Project ID.
• Click on Enable API which will enable the data catalog api on the respective project.

​

BigTable API Permissions

• Enable the bigtable.googleapis.com service in your GCP project. See the Cloud Bigtable Data API reference.
• Select the GCP Project ID.
• Click on Enable API which will enable the data catalog api on the respective project.

​

GCP Permissions

To execute metadata extraction workflow successfully the user or the service account should have enough access to fetch required data. Following table describes the minimum required permissions

​

Metadata Ingestion

To ingest metadata from BigTable, you need to create a service connection. The service connects BigTable with OpenMetadata. Once you create a service, OpenMetadata automatically starts ingesting metadata.

​

Step 1: Add New Service

1. Navigate to Settings > Services.
2. Click Add New Service.

​

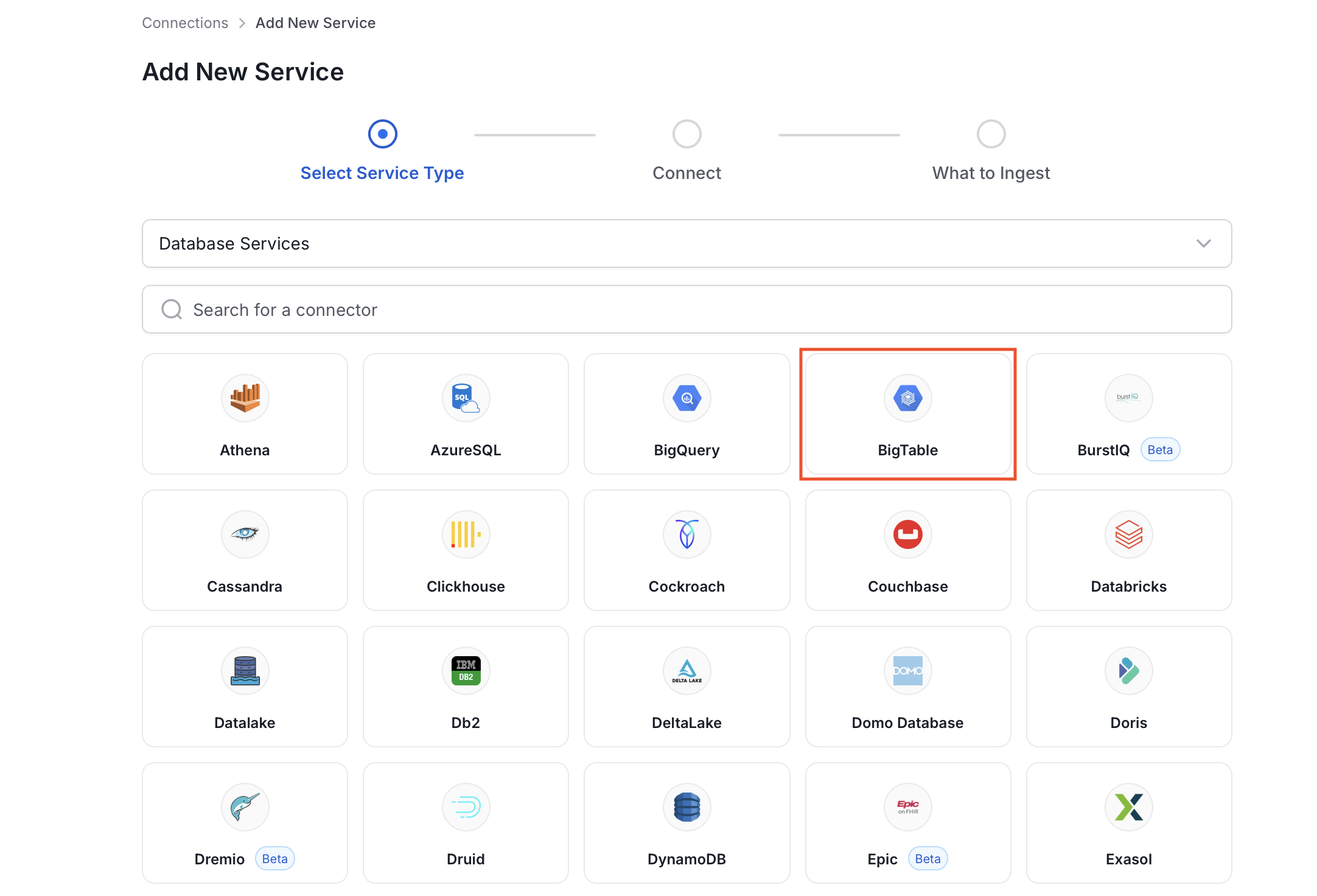

Step 2: Select a Service and Connector

From the service type dropdown, select Database Services, then click the BigTable connector tile.

​

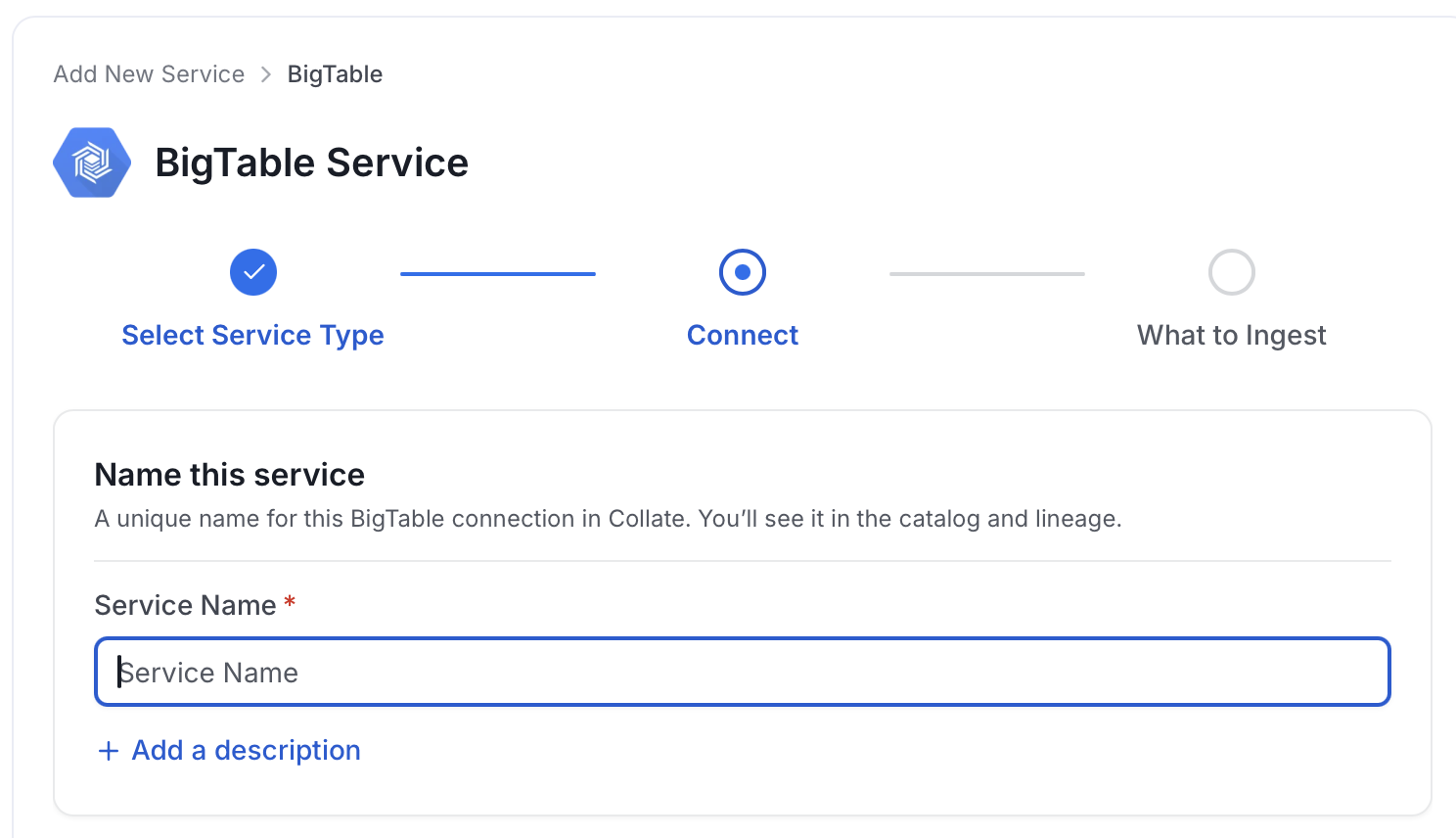

Step 3: Add Service Name and Description

• Enter a unique, descriptive Service Name. OpenMetadata identifies services by their service name. Enter a name that distinguishes this deployment from other BigTable services you are ingesting metadata from.
• Optional: Enter a Description for the service.

​

Step 4: Configure Connection Options

Specify your source credentials and verify the connection.

​

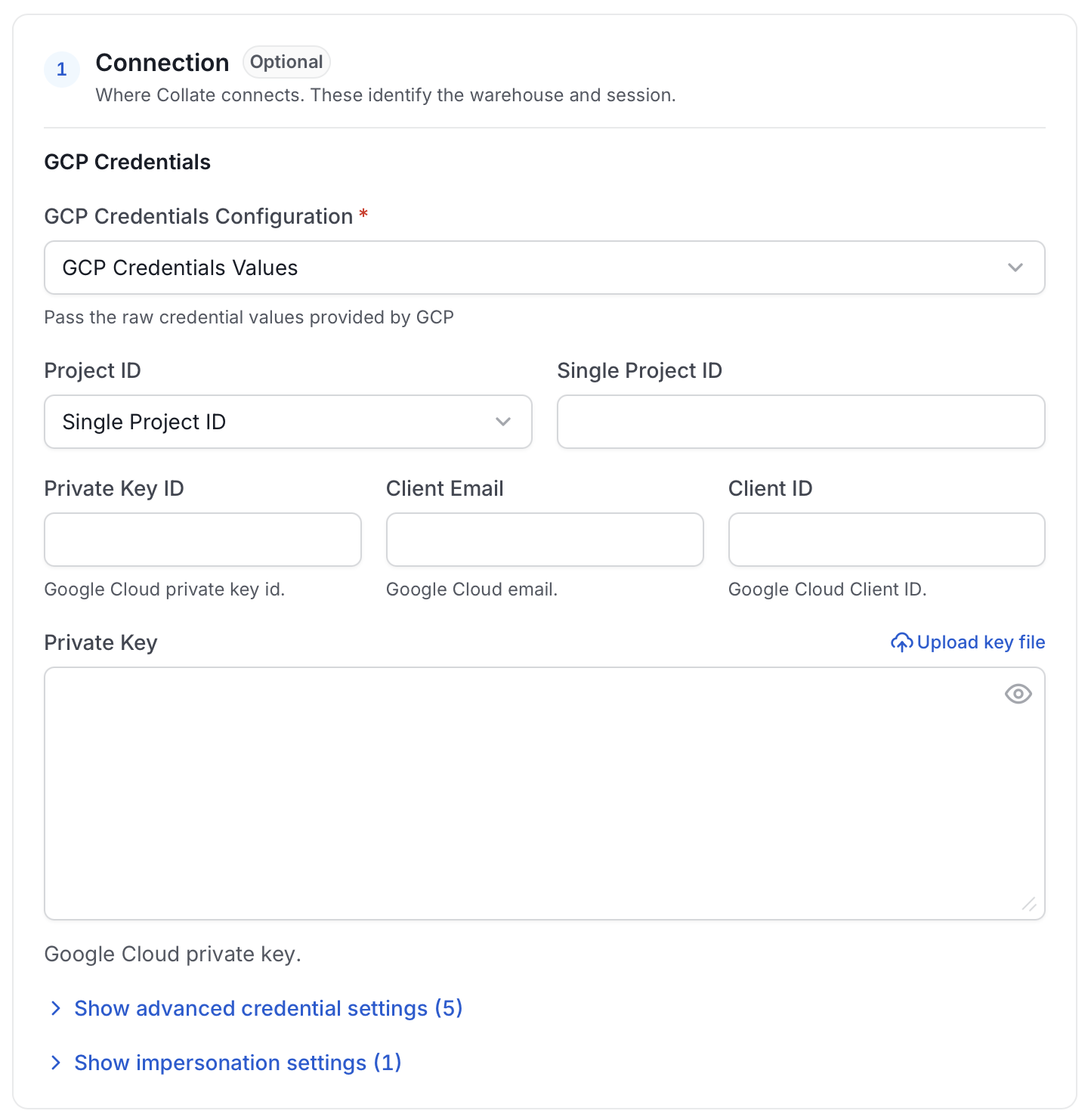

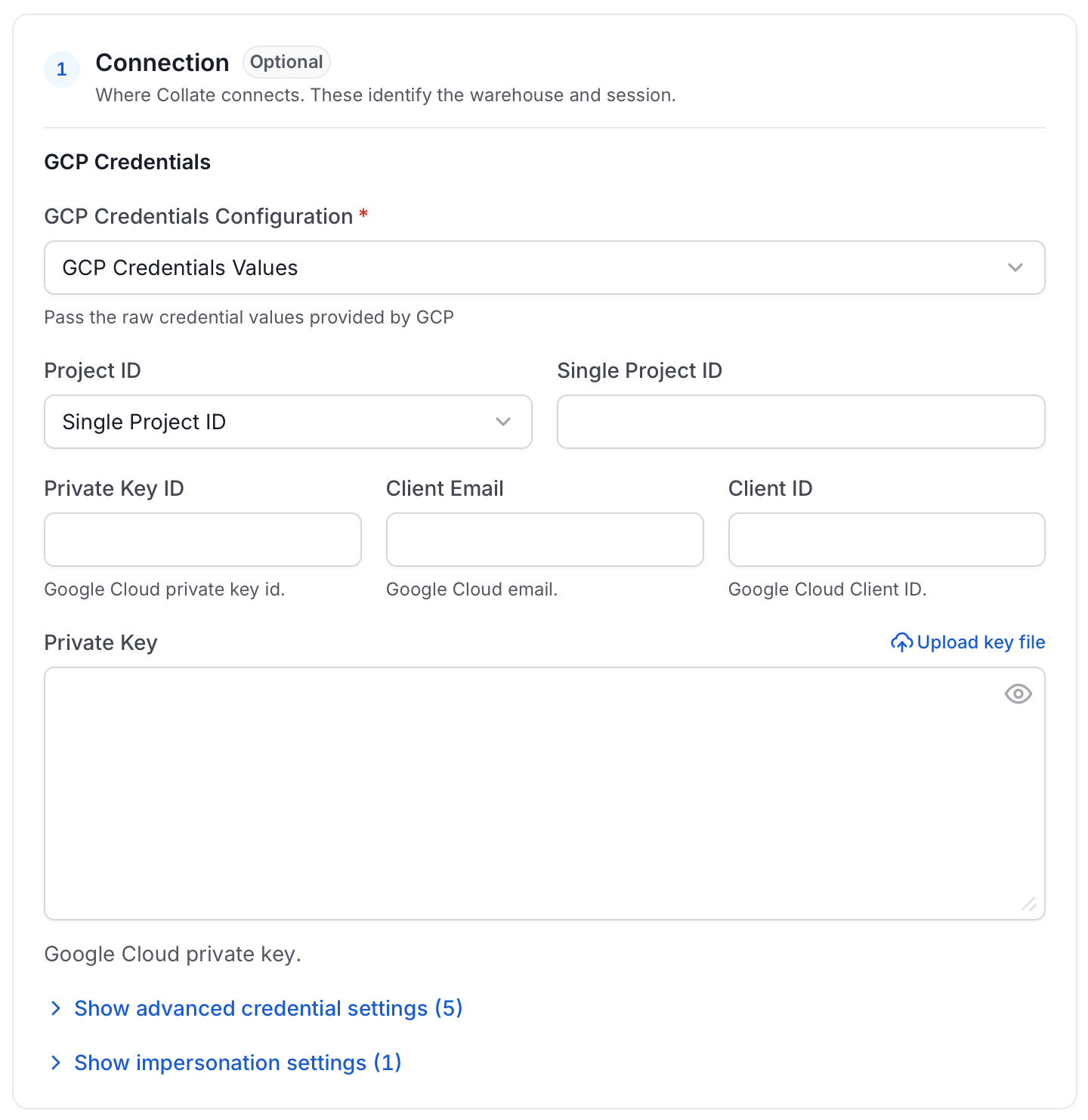

Enter Connection Details

Enter the connection details for BigTable. The right-hand panel in the UI displays inline help for each field.

• GCP Credentials: You can authenticate with your BigTable instance using either GCP Credentials Path where you can specify the file path of the service account key or you can pass the values directly by choosing the GCP Credentials Values from the service account key file. You can checkout this documentation on how to create the service account keys and download it.
  • GCP Credentials Values: Passing the raw credential values provided by BigTable. This requires us to provide the following information, all provided by BigTable:
    • Credentials type: Credentials Type is the type of the account, for a service account the value of this field is service_account. To fetch this key, look for the value associated with the type key in the service account key file.
    • Project ID: A project ID is a unique string used to differentiate your project from all others in Google Cloud. To fetch this key, look for the value associated with the project_id key in the service account key file. You can also pass multiple project id to ingest metadata from different BigTable projects into one service.
    • Private Key ID: This is a unique identifier for the private key associated with the service account. To fetch this key, look for the value associated with the private_key_id key in the service account file.
    • Private Key: This is the private key associated with the service account that is used to authenticate and authorize access to BigTable. To fetch this key, look for the value associated with the private_key key in the service account file.
    • Client Email: This is the email address associated with the service account. To fetch this key, look for the value associated with the client_email key in the service account key file.
    • Client ID: This is a unique identifier for the service account. To fetch this key, look for the value associated with the client_id key in the service account key file.
    • Auth URI: This is the URI for the authorization server. To fetch this key, look for the value associated with the auth_uri key in the service account key file. The default value to Auth URI is https://accounts.google.com/o/oauth2/auth.
    • Token URI: The Google Cloud Token URI is a specific endpoint used to obtain an OAuth 2.0 access token from the Google Cloud IAM service. This token allows you to authenticate and access various Google Cloud resources and APIs that require authorization. To fetch this key, look for the value associated with the token_uri key in the service account credentials file. The default token URI is https://oauth2.googleapis.com/token.
    • Authentication Provider X509 Certificate URL: This is the URL of the certificate that verifies the authenticity of the authorization server. To fetch this key, look for the value associated with the auth_provider_x509_cert_url key in the service account key file. The Default value for Auth Provider X509Cert URL is https://www.googleapis.com/oauth2/v1/certs
    • Client X509Cert URL: This is the URL of the certificate that verifies the authenticity of the service account. To fetch this key, look for the value associated with the client_x509_cert_url key in the service account key file.
  • GCP Credentials Path: Passing a local file path that contains the credentials.

​

Advanced Configuration

Database Services have an Advanced Configuration section, where you can pass extra arguments to the connector and, if needed, change the connection Scheme. This would only be required to handle advanced connectivity scenarios or customizations.

• Connection Options (Optional): Enter the details for any additional connection options that can be sent to database during the connection. These details must be added as Key-Value pairs.
• Connection Arguments (Optional): Enter the details for any additional connection arguments such as security or protocol configs that can be sent during the connection. These details must be added as Key-Value pairs.

​

Test Connection

Once the credentials have been added, click on Test Connection and Save the changes.

​

Step 5: Configure Ingestion Options

In the What to Ingest step, use filter patterns to control which assets OpenMetadata ingests from your database service. Filter patterns use regular expressions applied to asset names.

​

How Filter Patterns Work

• Include: Add one or more comma-separated regular expressions. OpenMetadata ingests only assets whose names match at least one expression. Leave blank to include all assets.
• Exclude: Add one or more comma-separated regular expressions. OpenMetadata skips any asset whose name matches an expression. Leave blank to exclude nothing.

Rules match asset names using one of five expressions:

• contains: matches any name containing the value. For example, sales matches my_sales_data and sales_2024.
• starts with: matches names beginning with the value. For example, prod_ matches prod_db and prod_schema.
• ends with: matches names ending with the value. For example, _raw matches events_raw and logs_raw.
• is exactly: matches the exact name only. For example, analytics matches only analytics.
• matches regex: matches names using a regular expression. For example, ^prod_.*_v\d+$ matches prod_events_v1.

When both Include and Exclude are set, Exclude takes priority. Filter Options The Database, Schema, and Table sections each include the following filter options:

• Database: Controls which databases OpenMetadata ingests from the source.
• Schema: Controls which schemas within the ingested databases are included.
• Table: Controls which tables and views within the ingested schemas are included.

Each section provides the following controls:

• Scan Mode: You can choose between the following scan modes:
  • Scan all: Ingests every asset of that type the connector can access. This is the default.
  • Only specific: Enables include rules so only assets matching at least one rule are ingested.
• Exclude system toggle: Use this toggle to automatically filter out system-reserved names defined by the connector, for example, Exclude system databases for the Databases section.
• Always exclude: Add permanent exclusion rules (shown in red). Assets matching these rules are never ingested, regardless of include rules.
• Preview: Shows a real-time summary of what will be in scope based on your current rules.
• Include rules (available only in Only specific mode): Click + Add to define a rule. Added rules appear as chips; an asset is included if it matches any rule.

​

Step 6: Create & Deploy

Click Create & Deploy to deploy the agent and start the first metadata ingestion run. OpenMetadata saves the service configuration and immediately begins pulling metadata from the source. To monitor ingestion progress or view the service you just added, go to Settings > Services and select your service.

​

Configure Metadata Agent and Schedule Ingestion

The Metadata Agent extracts schemas, tables, columns, and other structural metadata from your source and keeps your OpenMetadata catalog in sync. It powers discovery, lineage, and governance across your data assets. When you click Create & Deploy, OpenMetadata automatically deploys a Metadata Agent for this service and triggers the first ingestion run. View its status and run history from the Agents tab on the service detail page. To configure the additional Metadata Agent and schedule ingestion, follow these steps:

1. Navigate to Settings > Services and select the service type.
2. Click the service you have added.
3. Select the Agents tab and click Add Agent > Metadata. For some services, the dropdown is not available and clicking Add Agent takes you directly to the agent configuration page.
4. On the Configure Ingestion page, do the following and click Next.
   • Name this Ingestion: Enter a unique recognizable name for this ingestion pipeline.
   • Agent Setup: Configure core parameters for metadata extraction. The following fields are available:

     Field	Default	Description
     Default Owner	—	Owner applied to all entities when no specific level owner is configured. Accepts a user or team name/email.
     Service Owner	—	Owner assigned to the service entity.
     Database Owner	—	Owner assigned to all ingested databases. Accepts a single owner or a per-database name mapping.
     Database Schema Owner	—	Owner assigned to all ingested schemas. Accepts a single owner or a per-schema name mapping.
     Table Owner	—	Owner assigned to all ingested tables. Accepts a single owner or a per-table name mapping.
     Enable Inheritance	On	When on, child entities inherit the owner from their parent when they have no owner configured.
     Query Log Duration	1	Number of days to look back in query logs when processing stored procedure results.
     Query Parsing Timeout Limit	300	Timeout in seconds for parsing a single query.
     Number of Threads	1	Number of threads to use for parallel table ingestion.
     Incremental Extraction	Off	When enabled, subsequent runs only extract entities changed since the last successful run.
     Successful Pipeline Run Lookback Days	7	Number of days to search back for a prior successful run to use as a baseline for incremental extraction.
     Safety Margin Days	1	Additional days added to the baseline timestamp as a buffer for incremental extraction.
     JSON Schema Sample Size	10	Number of rows sampled to infer JSON column schema. Only applies when Extract JSON Schema is enabled in Advanced Config.


   • Filter Patterns: Apply include or exclude rules to scope which databases, schemas, tables, and stored procedures this agent ingests. For more information about various filter options, see Step 6: Configure Ingestion Options.
   • Scope & Behaviour: Control how the agent handles metadata during ingestion. Toggle each option on or off based on your needs:

     Toggle	Default	Description
     Include Tables	On	Ingest table metadata from the source. Turn off to skip tables entirely.
     Include Tags	On	Ingest tags from the source.
     Include Stored Procedures	On	Ingest stored procedure metadata.
     Include DDL Statements	Off	Ingest DDL statements alongside table metadata.
     Include Owners	Off	Assign owners to ingested entities when the source owner’s email matches a user in OpenMetadata. Does not overwrite an existing owner.
     Include Custom Properties	Off	Ingest connector-specific custom properties onto entities.
     Mark Deleted Tables	On	Soft-delete tables in OpenMetadata when they are removed from the source. Applies only within the currently ingested schema.
     Mark Deleted Stored Procedures	On	Soft-delete stored procedures in OpenMetadata when they are removed from the source.
     Mark Deleted Schemas	Off	Soft-delete schemas and all their child assets when removed from the source.
     Mark Deleted Databases	Off	Soft-delete databases and all their child assets when removed from the source.
     Override Metadata	Off	When on, source values overwrite existing descriptions, tags, owners, and display names in OpenMetadata. When off, OpenMetadata only updates fields that have no existing value.
     Enable Debug Log	Off	Sets the ingestion log level to DEBUG. Useful for troubleshooting.

     Available toggles vary by connector. Stored procedure options only appear for connectors that support stored procedures.

   • Advanced Config: Optional connector-specific settings such as Include Views and Extract JSON Schema.
5. On the Schedule Interval page, set when the agent runs:
   • Schedule: Choose a preset interval (Hourly, Daily, Weekly, Monthly) or enter a custom cron expression.
   • On-Demand: No automatic schedule; trigger the agent manually when needed.

6. Click Add to deploy the agent.

​
