In this section, we provide guides and references to use the OpenAPI/REST connector. Configure and schedule REST metadata workflows from the OpenMetadata UI:

• Requirements
• Metadata Ingestion
• Troubleshooting

​

Requirements

Before configuring the REST connector, make sure the following requirements are in place.

​

Configure the OpenAPI Schema URL

1. Generate an OpenAPI specification for the service.
2. In the REST service connection form, enter the OpenAPI Schema URL.
3. Provide an HTTP or HTTPS URL that is reachable from the ingestion environment and points directly to the schema file.
4. Optional: Enter a Token if the URL requires authentication.

​

Supported Formats

The connector supports these schema formats:

• JSON (.json)
• YAML (.yaml or .yml)

​

Metadata Ingestion

To ingest metadata from REST, you need to create a service connection. The service connects REST with OpenMetadata. Once you create a service, OpenMetadata automatically starts ingesting metadata.

​

Step 1: Add New Service

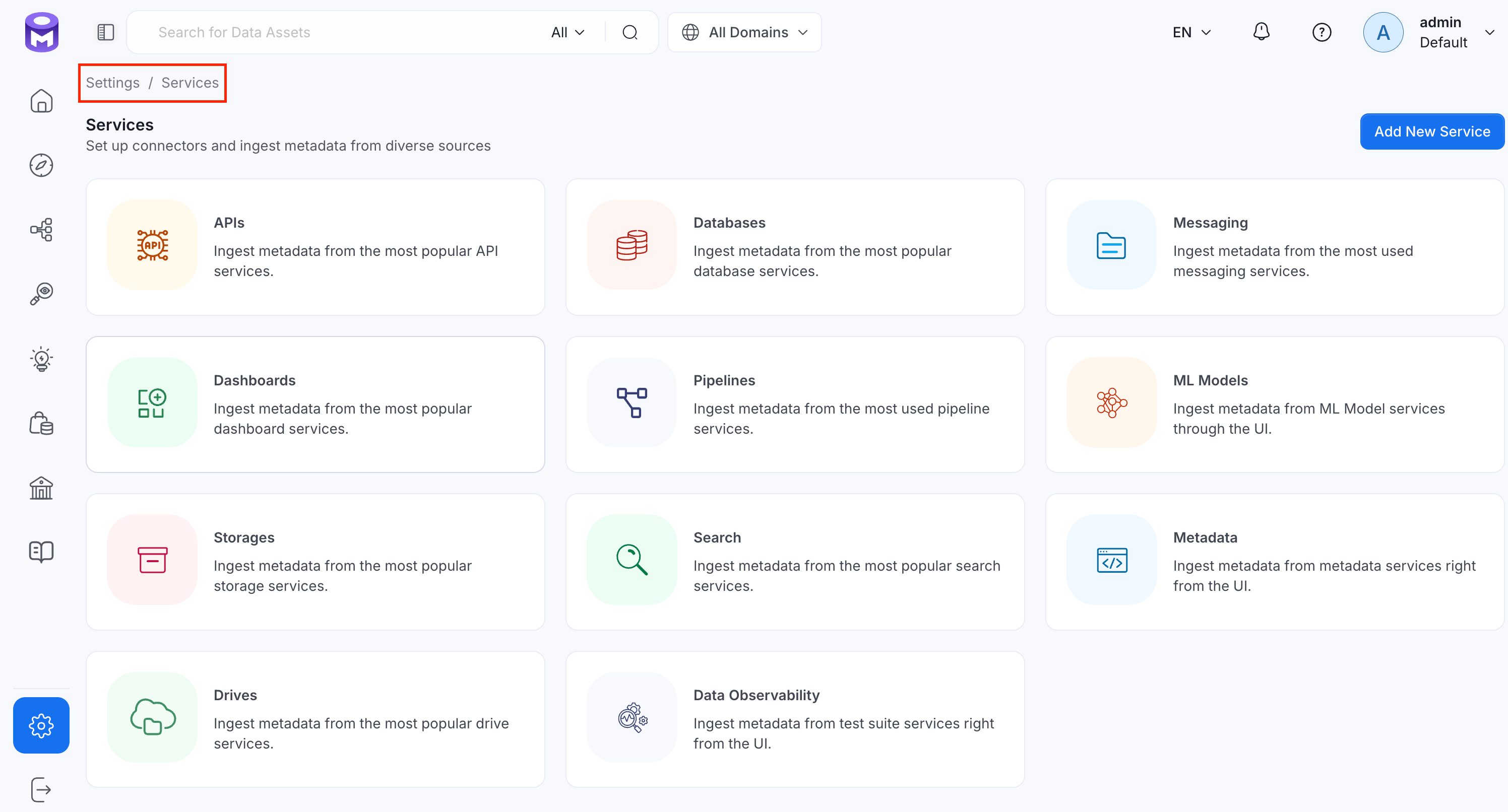

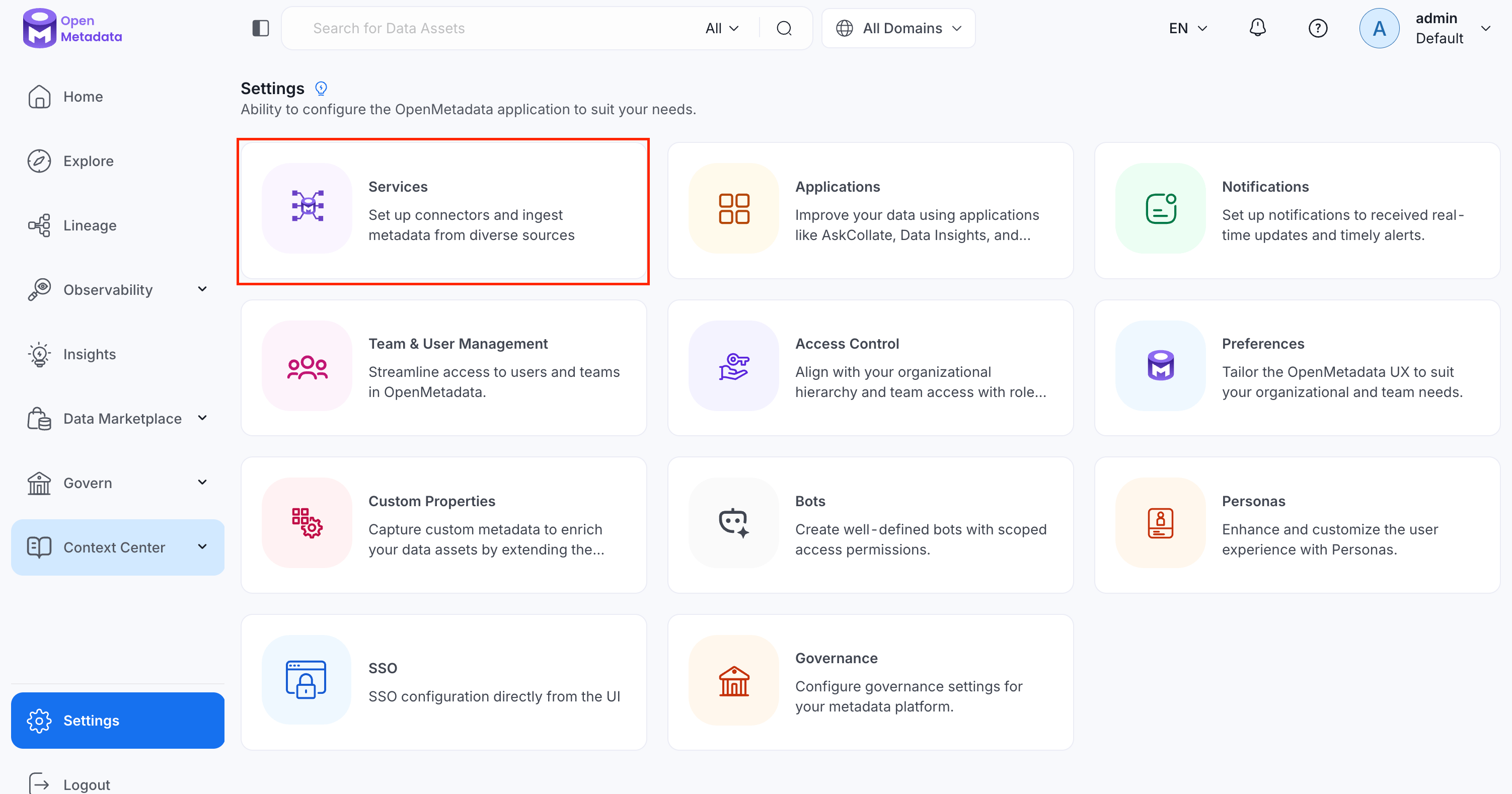

1. Navigate to Settings > Services.

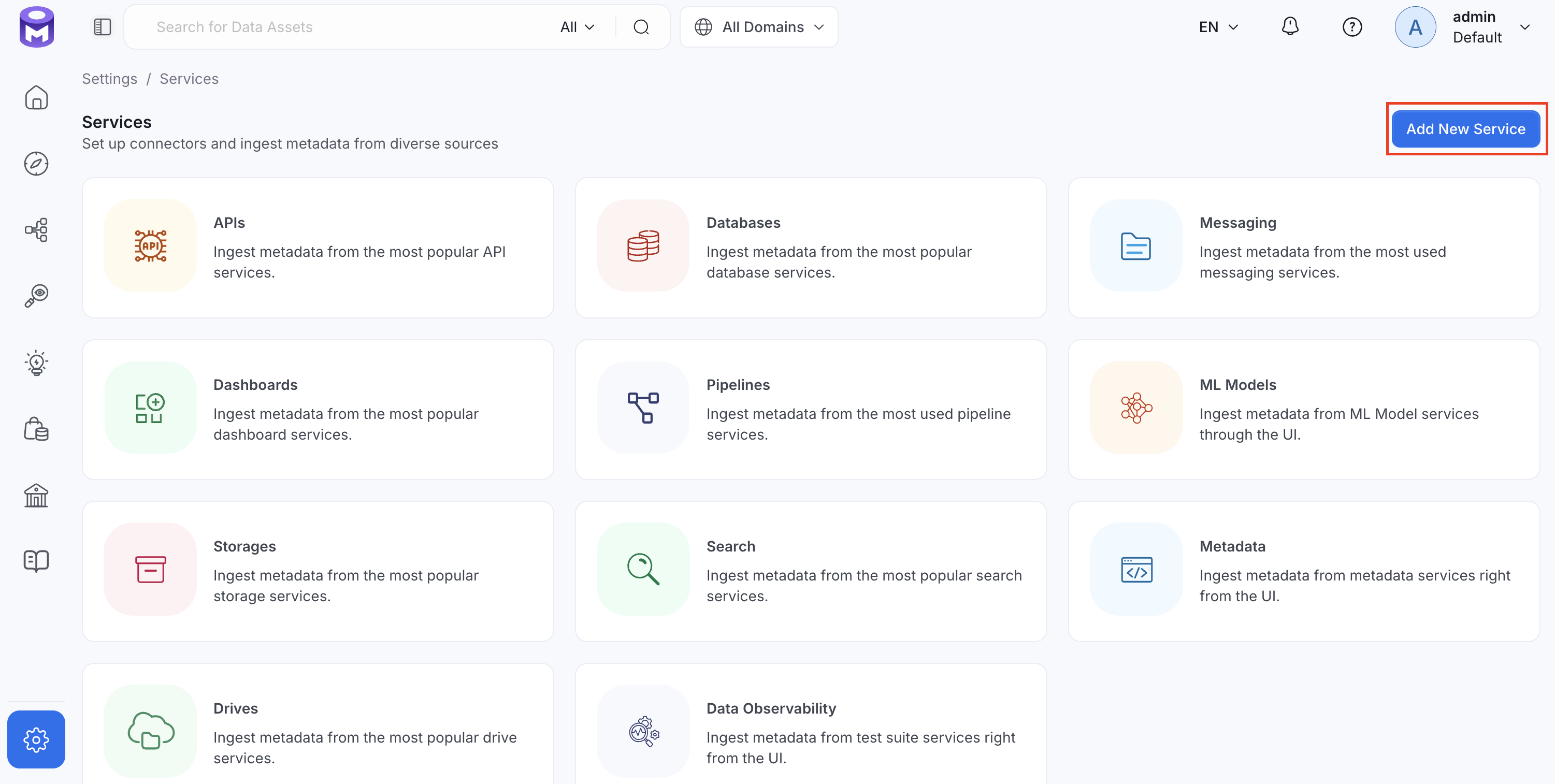

2. Click Add New Service.

​

Step 2: Select a Service and Connector

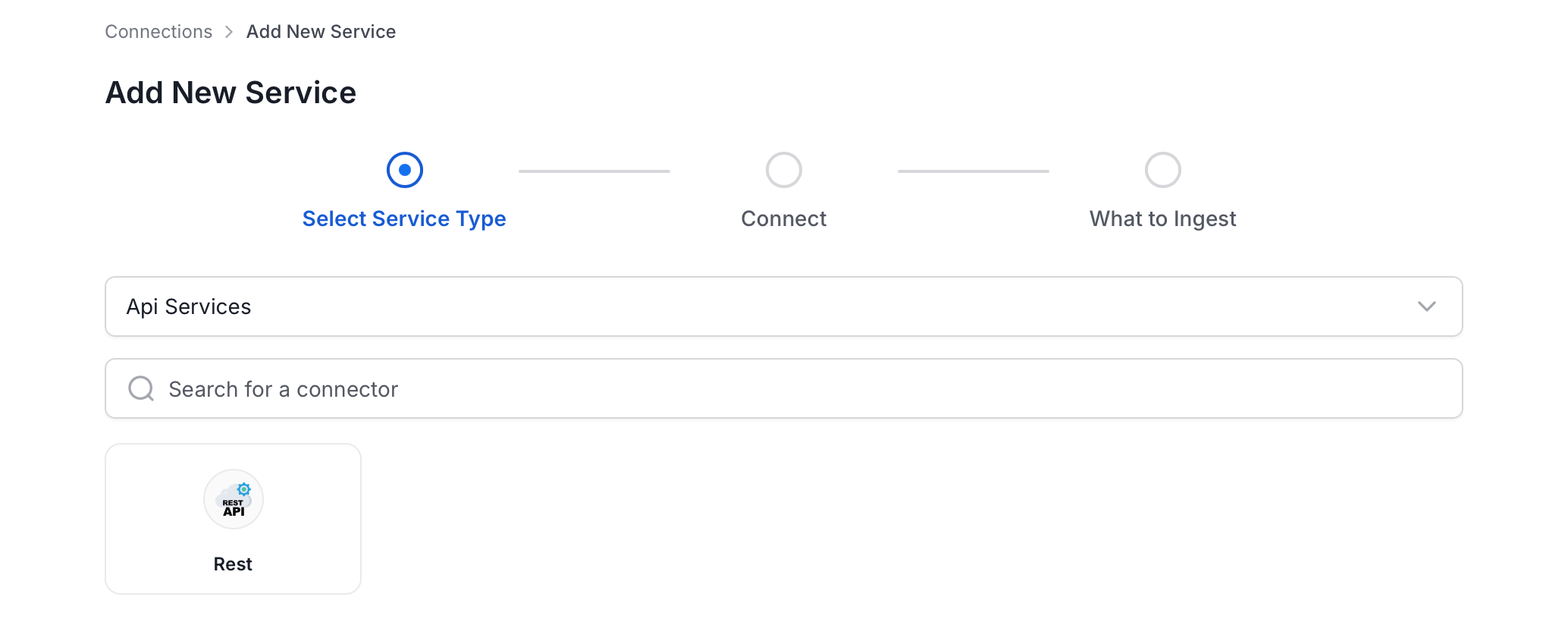

From the service type dropdown, select API Services, then click the REST connector tile.

​

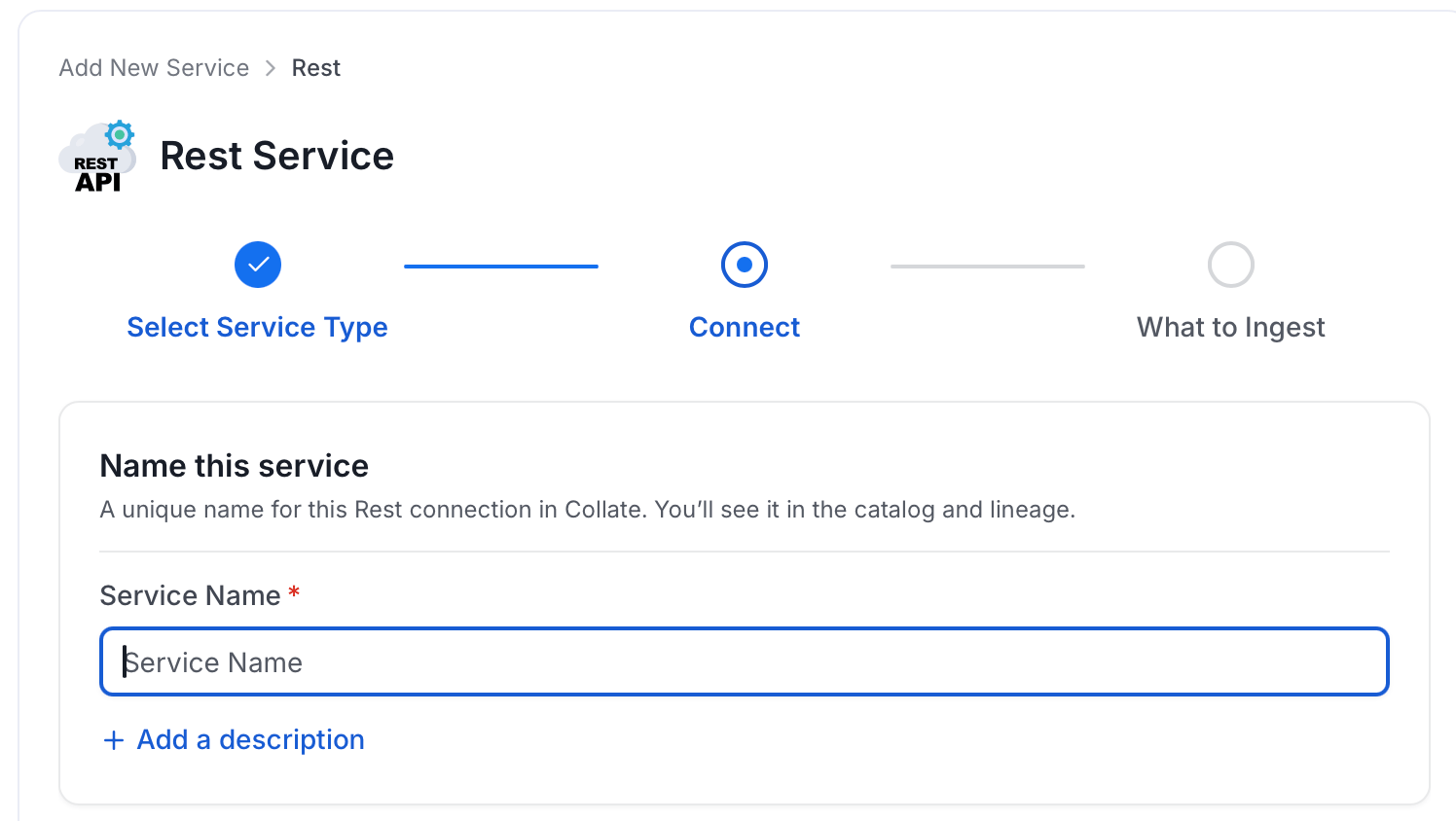

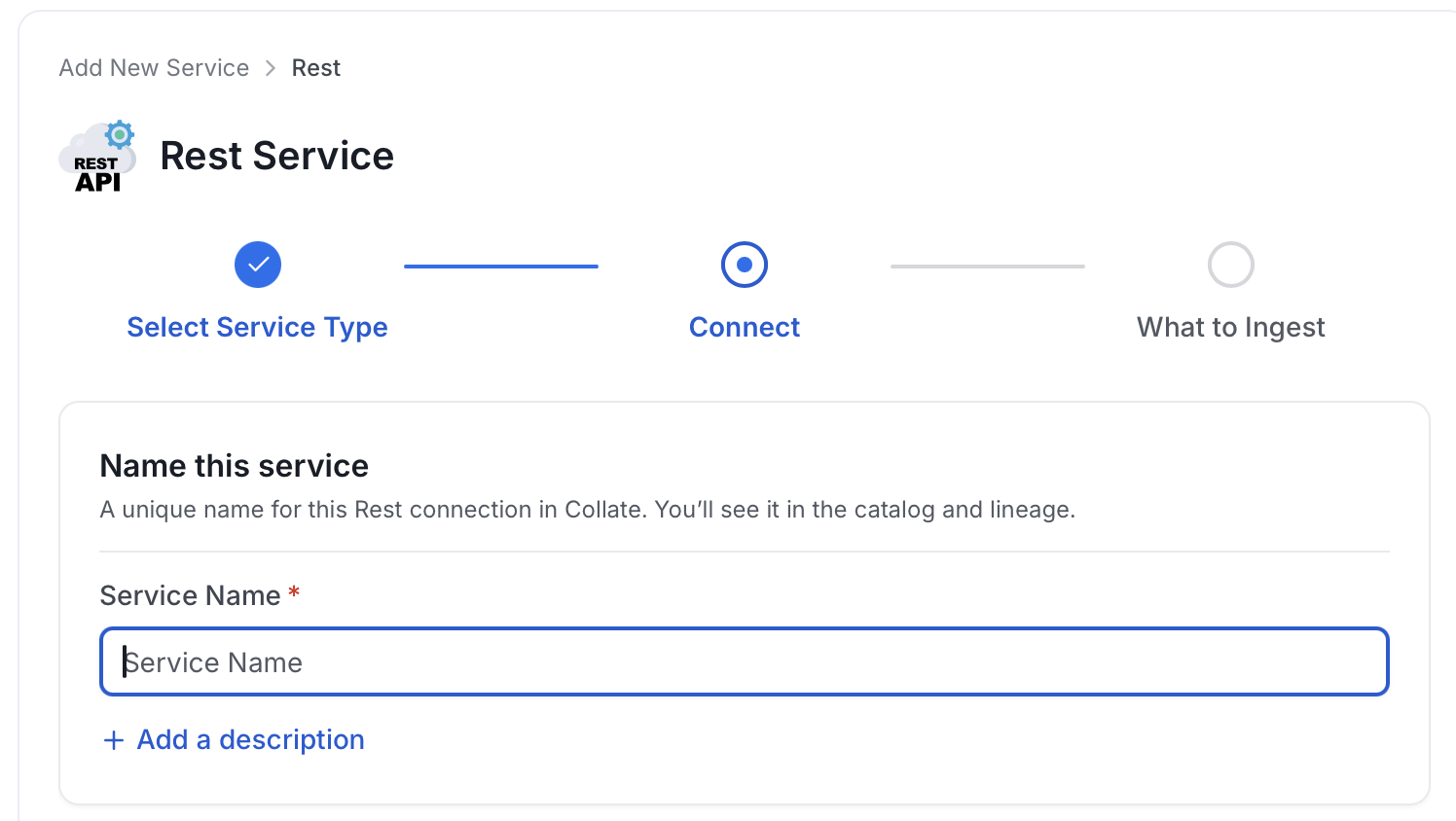

Step 3: Add Service Name and Description

• Enter a unique, descriptive Service Name. OpenMetadata identifies services by their service name. Enter a name that distinguishes this deployment from other REST services you are ingesting metadata from.
• Optional: Enter a Description for the service.

​

Step 4: Configure Connection Options

Specify your source credentials and verify the connection.

​

Enter Connection Details

Enter the connection details for REST. The right-hand panel in the UI displays inline help for each field.

• OpenAPI Schema URL: An OpenAPI schema URL typically refers to the URL where the OpenAPI Specification (OAS) document of a web service is hosted. The document defines the service’s API, including available endpoints, request/response formats, authentication methods, and so on It is usually in JSON format, for example https://petstore3.swagger.io/api/v3/openapi.json.
• Token: An authentication token to connect to an OpenAPI schema URL. It is only required if the API schema is protected or secured.

​

Test Connection

Once the credentials have been added, click on Test Connection and Save the changes.

​

Step 5: Configure Ingestion Options

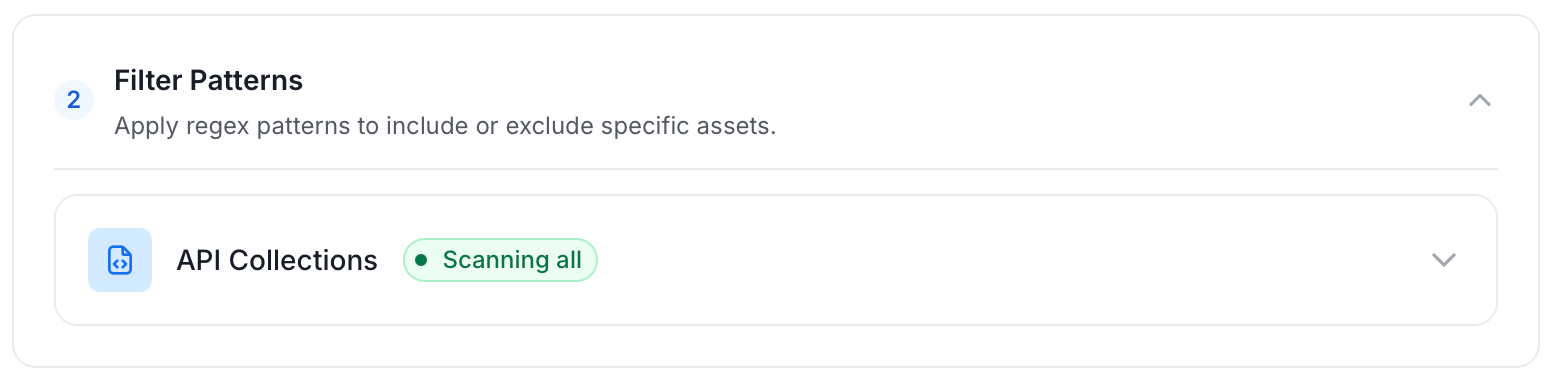

In the What to Ingest step, use filter patterns to control which assets OpenMetadata ingests from your API service. Filter patterns use regular expressions applied to collection names.

​

How Filter Patterns Work

• Include: Add one or more comma-separated regular expressions. OpenMetadata ingests only assets whose names match at least one expression. Leave blank to include all assets.
• Exclude: Add one or more comma-separated regular expressions. OpenMetadata skips any asset whose name matches an expression. Leave blank to exclude nothing.

Rules match asset names using one of five expressions:

• contains: matches any name containing the value. For example, sales matches my_sales_data and sales_2024.
• starts with: matches names beginning with the value. For example, prod_ matches prod_db and prod_schema.
• ends with: matches names ending with the value. For example, _raw matches events_raw and logs_raw.
• is exactly: matches the exact name only. For example, analytics matches only analytics.
• matches regex: matches names using a regular expression. For example, ^prod_.*_v\d+$ matches prod_events_v1.

When both Include and Exclude are set, Exclude takes priority. Filter Options The API Collection section includes the following filter options:

• API Collection: Controls which API collections (groups of endpoints defined in an OpenAPI specification) OpenMetadata ingests from the source.

Each section provides the following controls:

• Scan Mode: You can choose between the following scan modes:
  • Scan all: Ingests every asset of that type the connector can access. This is the default.
  • Only specific: Enables include rules so only assets matching at least one rule are ingested.
• Exclude system toggle: Use this toggle to automatically filter out system-reserved names defined by the connector, for example, Exclude system databases for the Databases section.
• Always exclude: Add permanent exclusion rules (shown in red). Assets matching these rules are never ingested, regardless of include rules.
• Preview: Shows a real-time summary of what will be in scope based on your current rules.
• Include rules (available only in Only specific mode): Click + Add to define a rule. Added rules appear as chips; an asset is included if it matches any rule.

​

Step 6: Create & Deploy

Click Create & Deploy to deploy the agent and start the first metadata ingestion run. OpenMetadata saves the service configuration and immediately begins pulling metadata from the source. To monitor ingestion progress or view the service you just added, go to Settings > Services and select your service.

​

Configure Metadata Agent and Schedule Ingestion

The Metadata Agent extracts API collections, endpoints, and other structural metadata from your source and keeps your OpenMetadata catalog in sync. It powers discovery, lineage, and governance across your data assets. When you click Create & Deploy, OpenMetadata automatically deploys a Metadata Agent for this service and triggers the first ingestion run. View its status and run history from the Agents tab on the service detail page. To configure the additional Metadata Agent and schedule ingestion, follow these steps:

1. Navigate to Settings > Services and select the service type.
2. Click the service you have added.

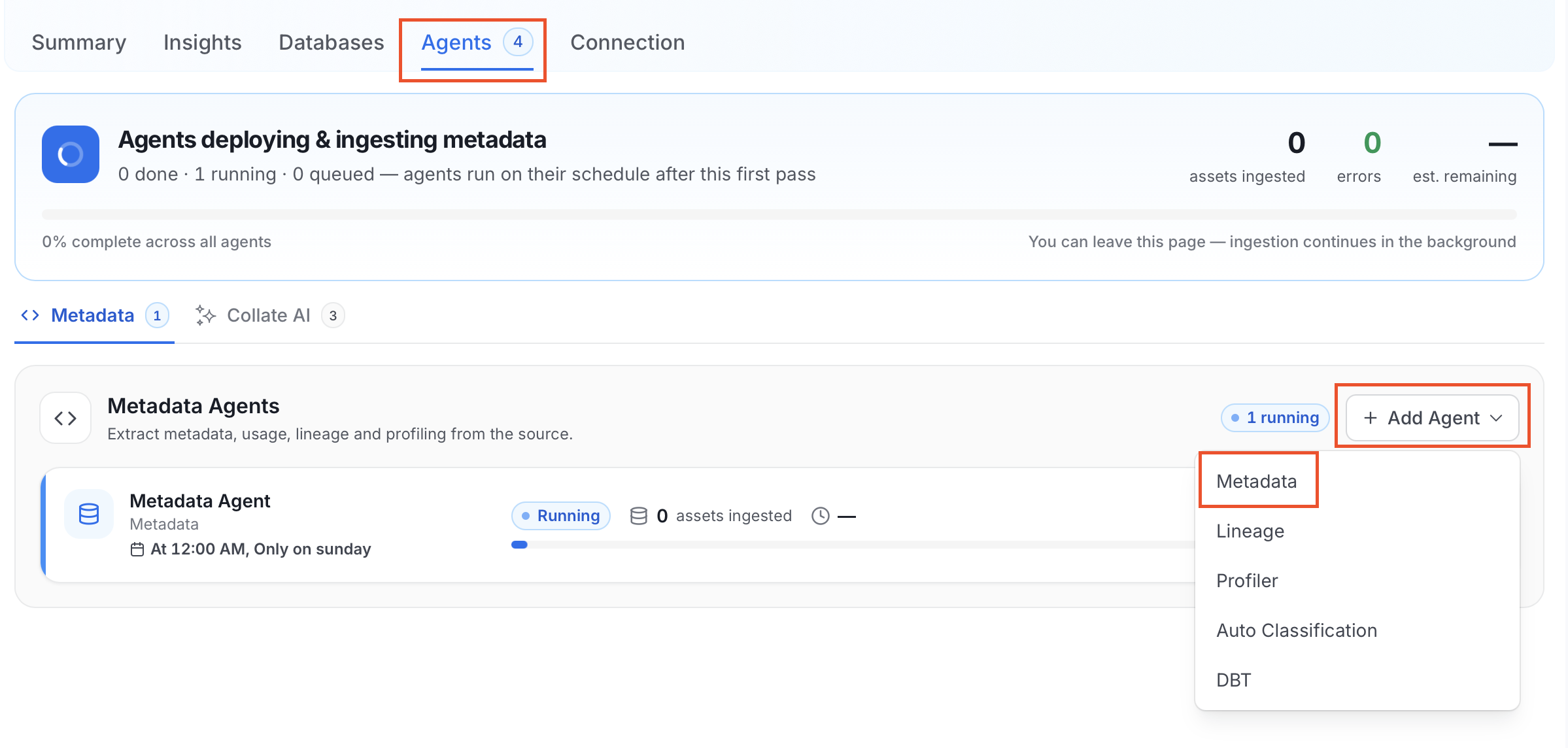

3. Select the Agents tab and click Add Agent > Metadata. For some services, the dropdown is not available and clicking Add Agent takes you directly to the agent configuration page.
4. On the Configure Ingestion page, do the following and click Next.

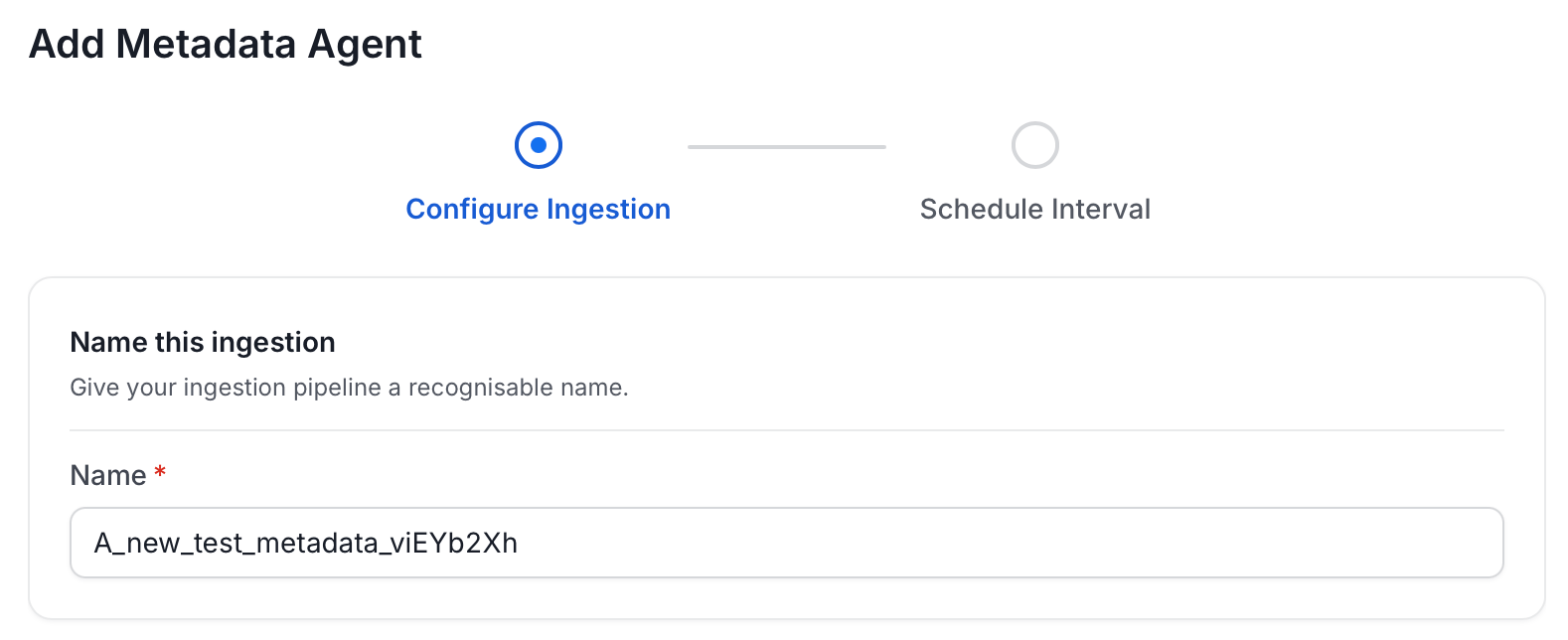

   • Name this Ingestion: Enter a unique recognizable name for this ingestion pipeline.

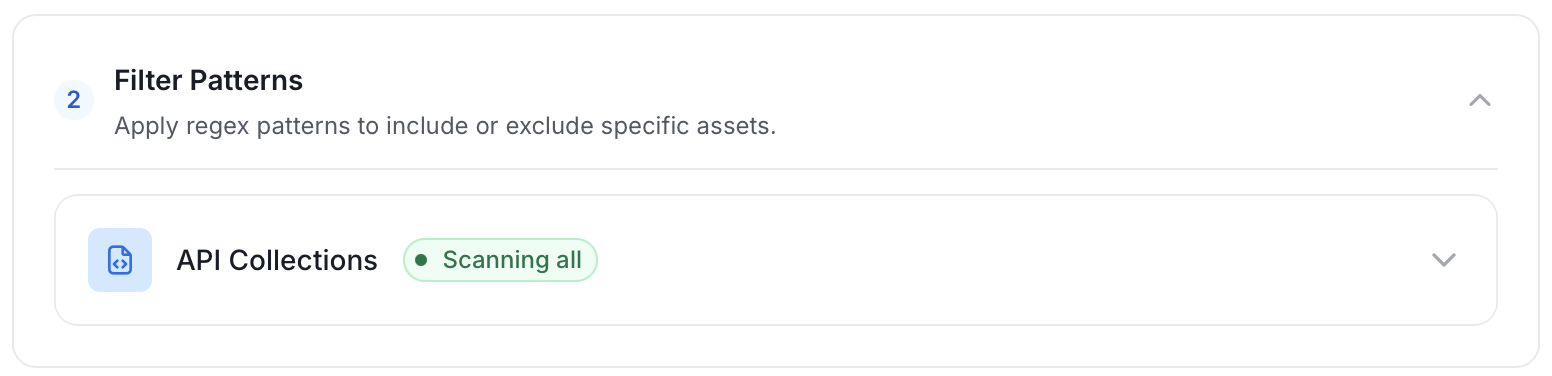

   • Filter Patterns: Apply include or exclude rules to scope which API collections and endpoints this agent ingests. These follow the same filter options described in Step 5: Configure Ingestion Options.

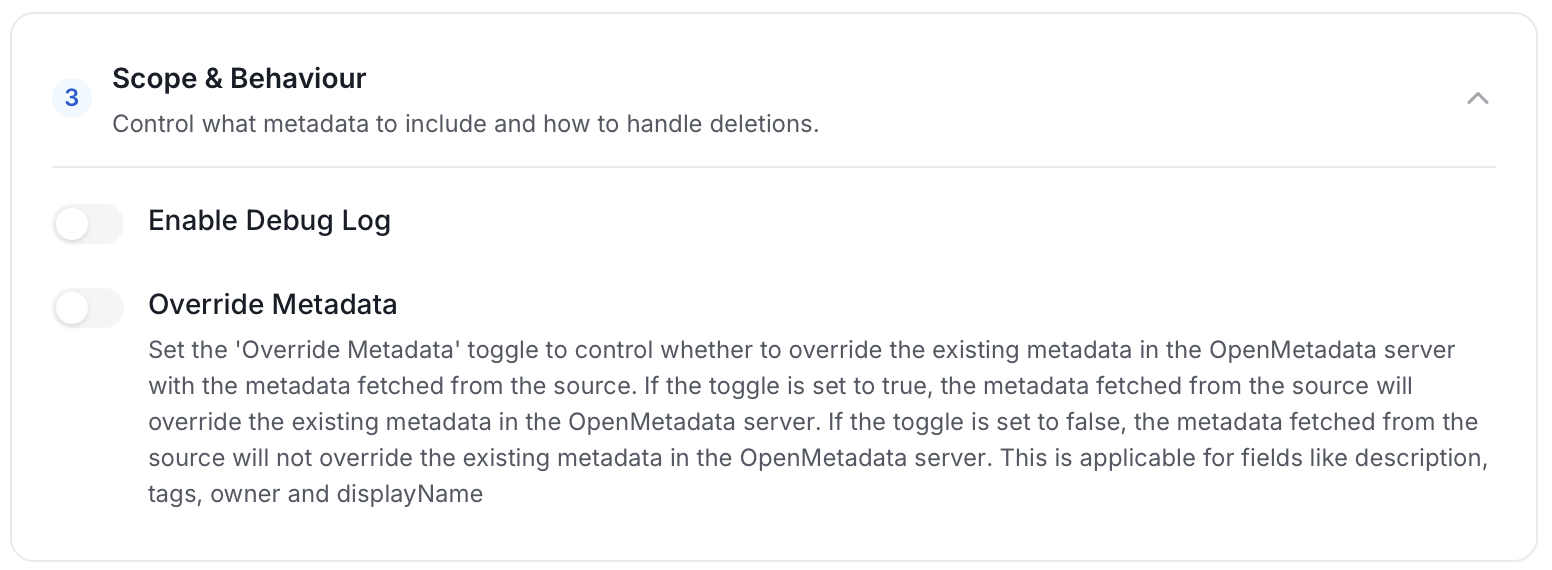

   • Scope & Behaviour: Control what metadata to include and how to handle deletions. Toggle each option on or off based on your needs:

     Toggle	Default	Description
     Mark Deleted API Collections	On	Soft-delete API collections in OpenMetadata when they are removed from the source. Associated entities like lineage are also deleted.
     Override Metadata	Off	When on, source values overwrite existing descriptions, tags, owners, and display names in OpenMetadata. When off, OpenMetadata only updates fields that have no existing value.
     Enable Debug Log	Off	Sets the ingestion log level to DEBUG. Useful for troubleshooting.


5. On the Schedule Interval page, set when the agent runs:
   • Schedule: Choose a preset interval (Hourly, Daily, Weekly, Monthly) or enter a custom cron expression.
   • On-Demand: No automatic schedule; trigger the agent manually when needed.

6. Click Add to deploy the agent.

​
